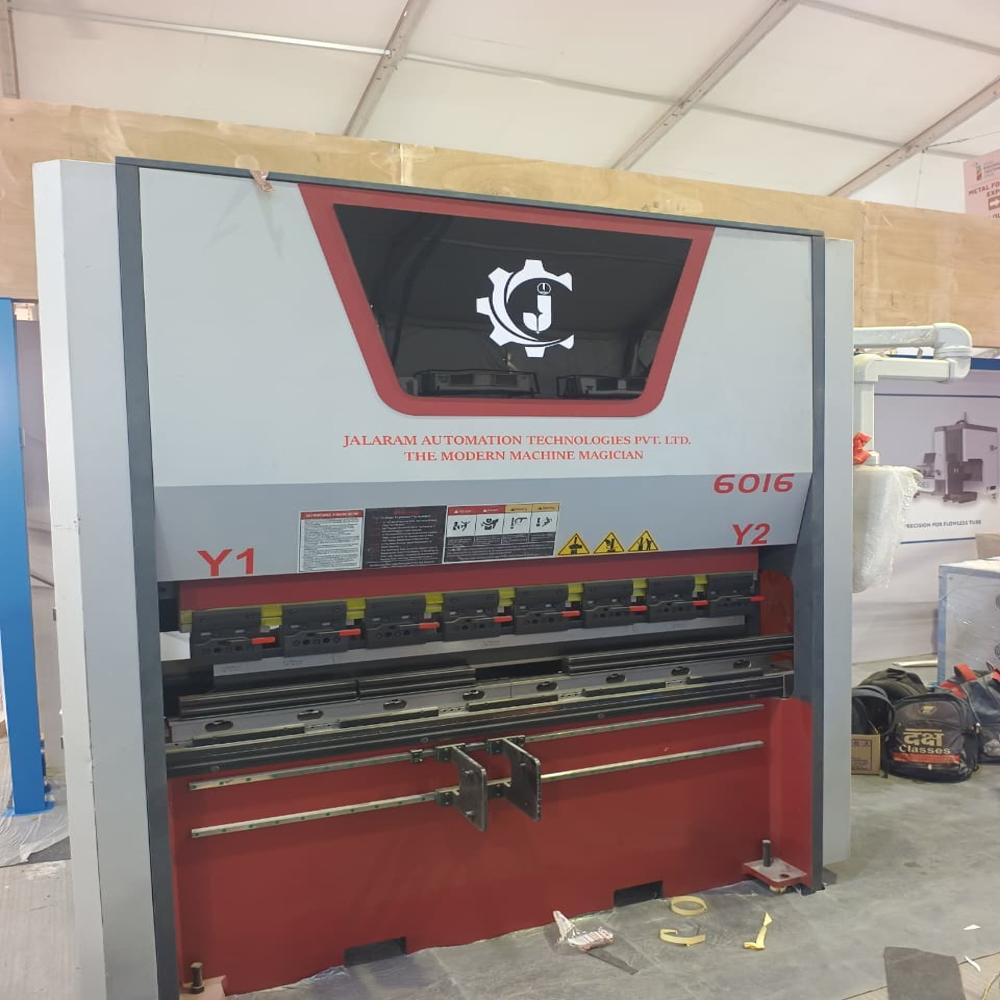

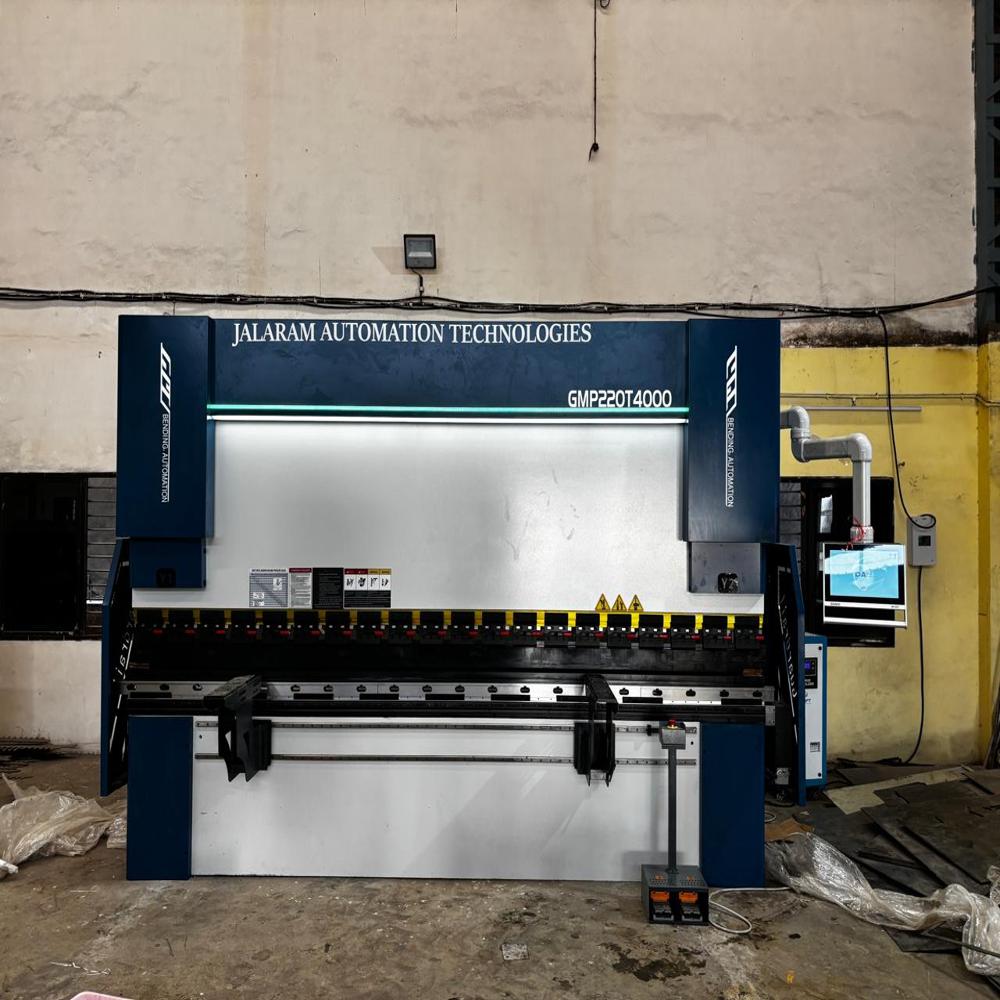

CNC Bending Machine

CNC Bending Machine Specification

Usage & Applications
Industrial

Working Area
4000 Square Millimeter (mm2)

Power
420 Volt (v)

Phase
3 Phase

Technology
CNC

Laser Type
Other

Material
Metal

CNC Or Not
CNC

Computerized
Yes

Automatic Grade
Automatic

Cooling Mode
Other

Control Software
MT 15

Graphic Format Supported
DXF

Weight (kg)
10 Tonne

Feature
High Performance

Color
Green

Warranty
1

CNC Bending Machine Trade Information

Minimum Order Quantity
1 Number

FOB Port
Vadodara

Payment Terms
Cheque

Supply Ability
1 Number Per Month

Delivery Time
45 Days

Sample Available
Yes

Packaging Details
Truck Load

Main Domestic Market
All India

About CNC Bending Machine

A CNC Bending Machine (CNC Press Brake) typically contains the following main components:

Machine Frame The rigid structure that supports all parts.
Ram (Upper Beam) Moves up and down to perform the bending operation.
Bed/Table Supports the workpiece and lower tooling.
Punch Upper tool that presses the sheet metal.
Die Lower tool that shapes the bend.
CNC Controller Computerized control unit used to program and operate the machine.
Back Gauge System Positions the sheet accurately before bending.
Servo or Hydraulic Drive System Provides the force and motion for bending.
Motors and Drives Control axis movements and positioning.
Linear Guides and Ball Screws Ensure precise movement of machine axes.
Sensors and Encoders Monitor position, angle, and machine status.
Electrical Control Panel Contains PLCs, relays, drives, and wiring.
Hydraulic Unit (for hydraulic machines) Includes pump, valves, oil tank, and cylinders.
Safety Systems Light curtains, emergency stop buttons, guards, and safety interlocks.
Crowning System Compensates for deflection to improve bend accuracy.

These components work together to provide accurate, repeatable, and automated sheet metal bending operations.A CNC bending machine (often called a CNC press brake or CNC tube/pipe bender, depending on the application) typically contains the following main components:

1. Machine Frame

Heavy steel structure that supports the entire machine.
Designed to resist bending and vibration during operation.

2. CNC Controller (Computer Numerical Control Unit)

The machine's "brain."
Stores bending programs and controls all machine movements.
Includes a display screen, keypad, or touchscreen interface.

3. Hydraulic or Electric Drive System

Depending on the machine type:

Hydraulic press brakes use hydraulic pumps, valves, cylinders, and oil reservoirs.
Electric servo press brakes use servo motors and ball screws for motion.

4. Ram / Upper Beam
